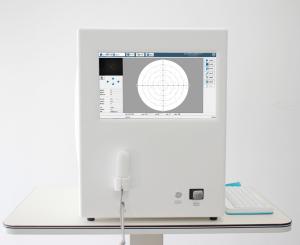

Fuse Type Automated Perimetry Test Machine 240V Multiple Report Analysis

Name: Fuse Type Automated Perimetry Test Machine 240V Multiple Report Analysis
Brand: SYSEYE
Price: 2 USD

Best Fuse Type Automated Perimetry Test Machine 240V Multiple Report Analysis wholesale

Brand Name : SYSEYE

Model Number : BIO-1000

Certification : CE

Place of Origin : China

MOQ : 1

Price : $2,800.00-$3,200.00

Payment Terms : T/T

Supply Ability : `100

Delivery Time : 5 working days

Packaging Details : 412mm ( length) * 497mm ( width) * 513mm ( height )

Product name : Provide multiple report analysis Automatic Computer Perimeter

Input power of the equipment : 300 VA

Fuse element : fuse type T2AL250V

Power : 100- -240V,50-60Hz

Feature : Provide multiple report analysis

Classified by operation mode : intermittent loading and continuous operation

Inspection range : 90°

Inspection distance : 30cm

Contact Now

peripheral vision test machine beautiful software interface multiple report analysis

BIO-1000 automatic computer vision instrument is developed by our R&D team to absorb the advantages of international advanced models. It integrates sound, light, mechanical and electrical technologies, adopts international general random detection mode for visual marking, and has a wide examination range (0-90°) to help doctors to judge the patient's eye condition more comprehensively.Automated Perimetry Machine Adopt the high-end computer configuration, compared with the domestic similar products, stability, reliability is higher.Support Windows XP, Win7 platform, beautiful software interface, simple operation, easy to learn and use.According to international standards, it provides a very comprehensive software testing program and multiple report analysis to assist in the diagnosis of diseases related to visual impairment and help to make a more accurate diagnosis

Automated Perimetry Machine Specifications:

Basic specification	Provide multiple report analysis Automated Perimetry Machine
Inspection range	90°
Inspection distance	30cm
Background light brightness	White 31.5asb
Visual target brightness	1asb--- -10000asb
Visual target size	GoldmannIII
Visual target interval time	200ms
Visual target interval time	Standard or adjustment according to patient reflection
Threshold test model	Center5-°16, center10° -68, 24 -2, 30-2, 30° -60° nasal step
Upper Threshold test model	30°- 40, 30°-76, P-60, 60°-81, 60°-120,190°-135 nasal side
Special detection strategy	Esterman monocular, Esterman binocular . user- customized test, 150P driver monocular fast detection, 150P driver monocular standard detection , upper 36 detection, blind spot detection,150horizontal straightness detection
Pupil size test	Automatic
Fixation monitoring	Blind spot monitoring , eye position eye position deviation alarm, eye deviation curve
Environment light detection	Automatic
Analysis software	Reliability analysis , single vision report, triple vision report, GPA half vision analysis, GPA glaucoma developing analysis , VFI vision index analysis
Operation system	Win7 above
Feature	Automated Perimetry Machine 1. Comprehensive real-time monitoring, heiji-krakau physiological blind spot monitoring. Gaze tracking/head position tracking, automatic measurement of pupil diameter, reduce the impact of pupil effect on visual field detection. 2. Personalized design, accurate clinical analysis, accurate and rapid examination strategy. 3. Under international Goldman standard, providing a variety of calssic test procedures and report analysis.

Background brightness and test stimulus brightness of the product are measured at the position of the pupil of the patient's eye.
1.1 background brightness
Background light: white with backlight intensity of 10 CD /m2.
1.2 test stimuli are within the tolerance range specified in table 1.

1Parameter of stimulus

NO.	Content	Tolerance
1	Background light,	+25%,-20%
2	Contrast ,	Background white,stimulus white	Tolerance +25%,-20%
3	Stimulus position	0°～10°:≤0.5°
		10°～30°:≤1°
		＞30°:≤2°
4	Stimulus size	Point angle:+20%,-15%
5	Interval time	200ms, ±20%
6	Scope of background	Most of the peripheral stimulus points do not exceed 2° beyond the boundary
7	Stimulus shape	The ratio of the short axis length to the long axis length of the stimulus points is shown in table 2
